If circles are drawn with each side of a triangle of sides 5 centimetres, 12 centimetres and 13 centimetres, as diameters, then with respect to each circle, where would be the third vertex?. Circles





 3)If circles are drawn with each side of a triangle of sides 5 centimetres, 12 centimetres and 13 centimetres, as diameters, then with respect to each circle, where would be the third vertex?

Answer:


Let, ABC be a triangle with sides AB= 12cm BC = 5cm and AC = 13cm

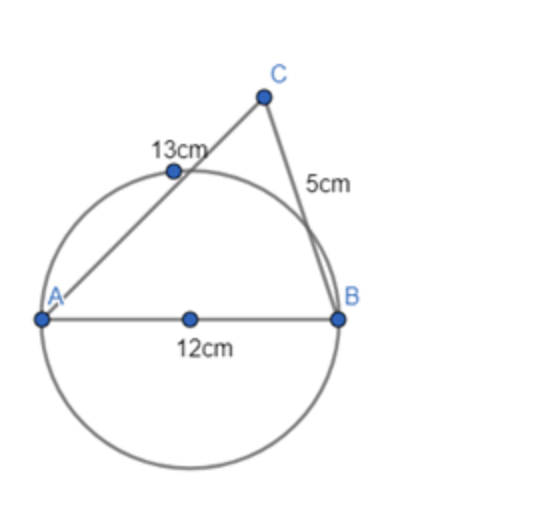

Case 1: Let us draw a circle considering AB = 12cm as a diameter

Then, point C lies outside the circle.


Case 2: Let us draw a circle considering BC = 5cm as a diameter


Then point A lies outside the circle

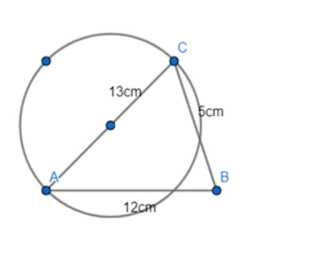

Case 3: Let us draw a circle considering AC = 13cm as a diameter


Then. Point B lies outside the circle
